Its time I finally post an official build thread for my Camaro.

All of you know, this used to be Chris's car, I bought it last April.

1994 Camaro Z28
383 Stroker
Automatic transmission
Full exhaust

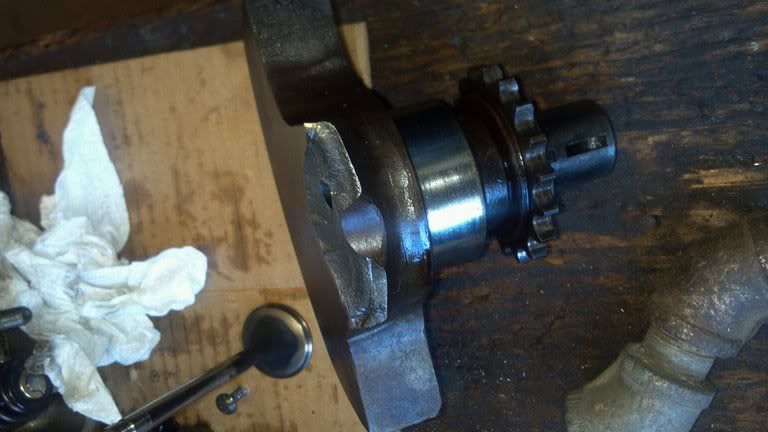

Last fall, while driving at 55 MPH to work one evening, the crank snapped right in front of the first main:

1994 Camaro Z28 official build thread Photobucket-8031-1330202351283

1994 Camaro Z28 official build thread Photobucket-16263-1330202331524
This was likely due to the wrong flexplate for the application, as well as it being a crappy cast eagle stroker crank.

Also, during tear down, we found out that the car had been overheated at one point trashing a bunch of stuff:

1994 Camaro Z28 official build thread Photobucket-7167-1330202099827
1994 Camaro Z28 official build thread Photobucket-48637-1330202249778

SO, the car basically needed an entire reciprocating assembly, as well as a bunch of machine work.

Mahle .30 over forged pistons:
1994 Camaro Z28 official build thread 14_imagejpeg952

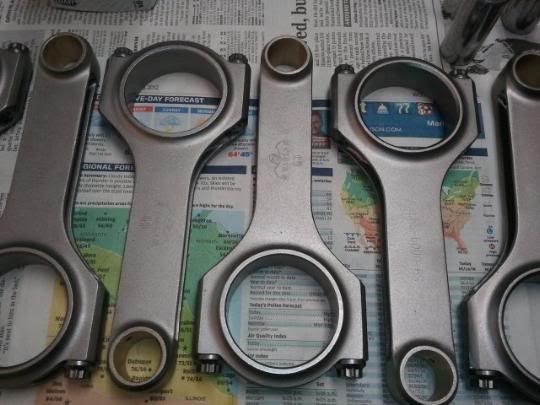

Eagle forged H-Beam rods:
1994 Camaro Z28 official build thread 6_imagejpeg952

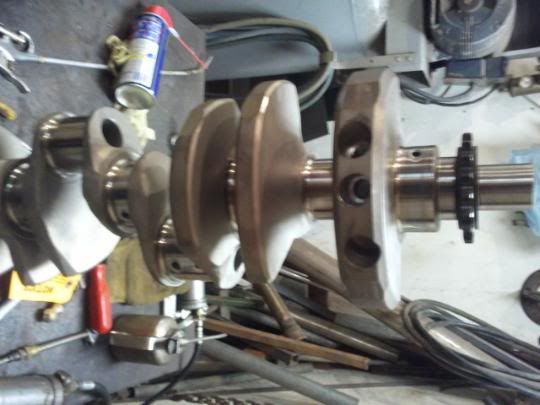

Eagle 4340 Forged Crank with the snout keyed:
1994 Camaro Z28 official build thread 17_imagejpeg952

New bearings, rings, ect... One piece Trickflow Pushrods and cleaned up lifters. We also kept the GM847 camshaft and the Melling High Volume Oil pump.
1994 Camaro Z28 official build thread 11_imagejpeg952

The mains were splayed to a 4 bolt:
1994 Camaro Z28 official build thread 12_imagejpeg952

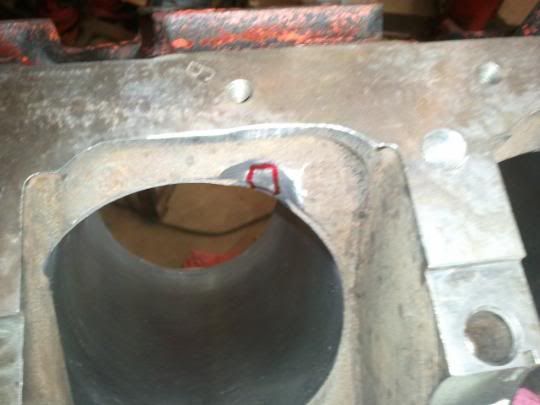

Also, some Machine work was needed to fit the larger rods:
1994 Camaro Z28 official build thread 16_imagejpeg952


Last edited by StrokedZ on Wed Jul 11, 2012 8:36 pm; edited 1 time in total
Back to top Go down
XSFTLBS
Legit
XSFTLBS


Posts : 2876
Join date : 2010-01-27
Age : 42
Location : In the fucking garage again.

1994 Camaro Z28 official build thread Empty
PostSubject: Re: 1994 Camaro Z28 official build thread   1994 Camaro Z28 official build thread Icon_minitimeWed Jul 11, 2012 8:09 pm

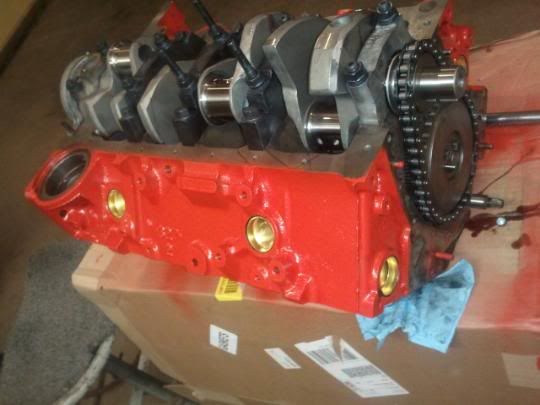

Next, was assembly of the short block:
1994 Camaro Z28 official build thread 15_imagejpeg952
1994 Camaro Z28 official build thread 5_imagejpeg952
1994 Camaro Z28 official build thread 2_imagejpeg952

The heads were gone through, higher rate springs were installed along with a SINGLE exhaust valve that was bent. Also, a 5 angle vlave job was performed, along with some port work here and there.

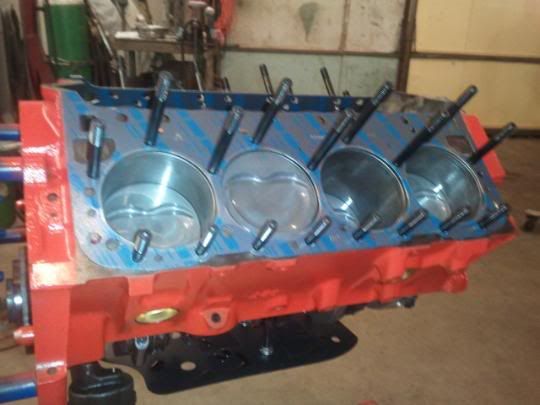

ARP head studs:
1994 Camaro Z28 official build thread 2_imagejpeg952

On the engine:
1994 Camaro Z28 official build thread 2012-05-08_22-27-10_681



A new timing chain and water pump drive were installed, as well as multiple little parts. There was also a new windage tray (moroso) installed to match the oil pan better:
1994 Camaro Z28 official build thread 15_imagejpeg952

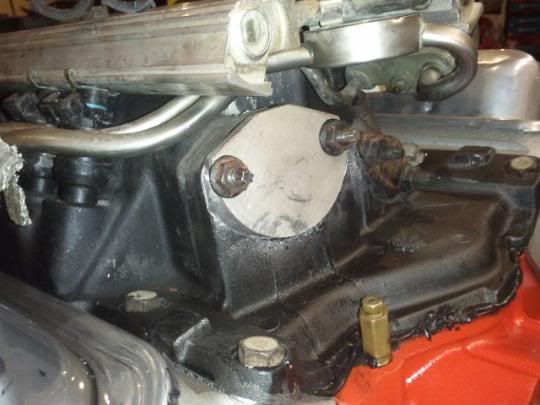

Dave even went the extra mile and fabricated an EGR blockoff plate:
1994 Camaro Z28 official build thread 19_imagejpeg952
1994 Camaro Z28 official build thread 20_imagejpeg952

Complete Motor:
1994 Camaro Z28 official build thread 3_imagejpeg952

The motor is now in the car, and I'm just waiting on transmission parts and a tune. The car also has been converted to OVC wires, a vented Optispark setup, and now has ES poly motor mounts. Also, all hardware in the bottom end is now ARP2000 stuff, along with a bunch of other ARP bolts (timing cover, water pump, intake, Flexplate to engine, ect.

Trans is going through a rebuild at the moment, with Raybestos Red Devil Clutches, a new pump, and a PTC 3600 street/strip stall converter. Also added was a TCI SFI approved balanced flex plate. I need to get a different harmonic dampener at some point, as well as a couple of other parts here and there. The 18' chrome wheels will be gone, swapped for a set of 17' 2002 SS wheels. Eventually I will be running Nitto 555R drag radials. The pacesetter long tubes were put back on the car, along with teh same exhaust the car had when I bought it. Also, we fixed a bunch of small issues, like the temp sender for the coolant gauge, the battery cables, the ground straps, and the oil pressure sending unit. next on the list is a Strange 12 bolt rear end.
